The Plexi 6V6

meh 1/2002
Previous Next

I also did a bit of point-to-point wiring on lugs, mostly because I needed to add a few parts here and there, and the output tube sockets were missing all their non-connected pins, so I couldn't use them for tie points.

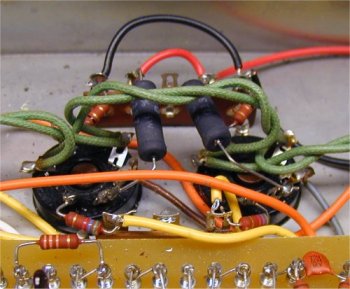

Here's a close up of the output tube sockets, showing the 5K6 grid resistors, the 1K/5W screen resistors, and the one ohm current measuring resistors.

Tube Sockets

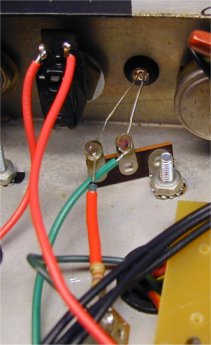

I was hesitant to use the #47 6v bulb for the pilot light, since I had added an extra tube to the heater winding already, so I used a super-bright red LED instead.

Tube Sockets
